Plan View for HTTP Tasks

During the execution of your plan, you can create a task to send HTTP requests to a third-party application endpoint. For example, when a preceding task successfully executes, you can send an HTTP message to a designated endpoint with information from that task.

In Plan View, you can create HTTP tasks to send a request to endpoints before or after the execution of other tasks. Also, you can use the HTTP task to generate a dataset with API call response that can be used in Designer Cloud workflow. These tasks are specified in the right context panel.

  • An HTTP task is a request between Alteryx Analytics Cloud (AAC) and another application. These requests are delivered using HTTP and can be interpreted by the receiving application to take action.

    Note

    Your receiving application may require that you whitelist the host and port number or IP address of the platform. Please refer to the documentation for your application.

  • An HTTP task is one of the task types available in a plan. For more information, go to Plan View Page.

Limitations

  • For the Input Dataset (Load Configuration from Dataset):

    • Rows: 10,000.

    • File size: 1 GB.

    • Row size: 100 MB.

  • HTTP-based requests have a 30-second timeout limit.

  • Custom security certificates cannot be used.

Prerequisites

Requirements for receiving application

To send an HTTP request to a target application, the application must be configured to receive the request:

  • Requests from outside of the application domain must be enabled.

    Note

    Your receiving application may require that you whitelist the host and port number or IP address of the platform. Please refer to the documentation for your application.

  • You must acquire the URL of the endpoint to which to send the HTTP request.

  • You must acquire any HTTP headers that must be inserted with each HTTP request.

  • If the request must be signed, additional configuration is required. Details are below.

Create Task

  1. Drag and drop the HTTP task from the left pane to the Plan canvas.

  2. In the right panel, select HTTP task. The HTTP task panel is displayed.

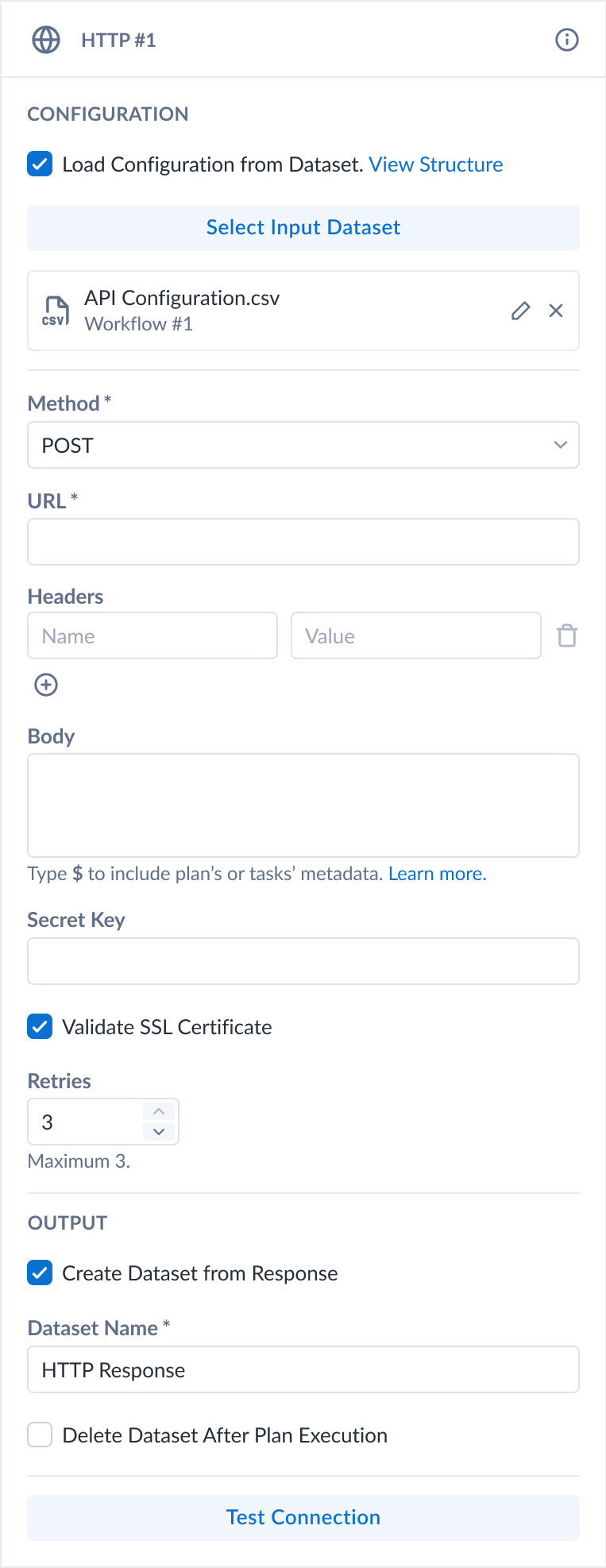

Figure: HTTP task

Field

Description

Method

Select the HTTP method to use to deliver the message. The appropriate method depends on the receiving application. Most use cases require the POST method.

URL

URL where the HTTP request is received by the other application.

Headers

Insert HTTP content headers as key-value pairs. For example, if your body is in JSON format, you should include the following header:

key: Content-Type
value: application/json

Note

You may be required to submit an authentication token as the value for the Authorization key.

Body

(POST,PUT, or PATCH methods only) The body of the request submitted to the receiving application. The request body is structured as follows:

{"text":"My text message to the receiving application."}

Tip

As part of the request body or header fields, you can insert metadata references to the plan definition, current run, tasks already executed in the run, and, column data and data sources. For more information on the available metadata, see Plan Metadata References.

For examples of requests including metadata examples, see Create HTTP Task.Create HTTP Task

Secret Key

(Optional) A secret key can be used to verify the request payload. This secret value must be inserted in this location, and it must be included as part of the code used to process the requests in the receiving application. Insert the secret value here as a string without quotes.

For more information on how this secret key is used to generate a signature, SeeCreate HTTP Task.Create HTTP Task

Validate SSL Certificate

When set to true, HTTPS (SSL) communications are verified to be using a valid certificate before transmission.

Note

If you must send a request to an endpoint that has an expired/invalid certificate, you must disable SSL verification.

Retry

If the returned status code is outside of the 200-299 range, then the HTTP task is considered to have failed. When this option is enabled, the request is retried.

If the request fails, this value defined the number of times that the request should be retried. If this number of retries is reached without success, the task fails.

Create Dataset from Response

When set to true, you can use the dataset to create a workflow.

Configure task

  1. Set the required parameters. For more information on parameters, go to Plan View for HTTP Tasks.

  2. You can specify plan metadata information in the header values and request body of your request. For more information, go to Plan Metadata References.

  3. To test the connection, click Test. A success message is displayed.

    Tip

    A status code of 200 indicates that the test was successful.

    Tip

    You can use the GET method for testing purposes. A GET request does not change any data on the target platform but may permit you to specify elements in the request body.

  4. To add the task, click Save.

Rename Task

To rename the task, click More menu > Edit in the right panel.

Tip

Good naming may include the target platform endpoint and method, as well as the purposes of the task in your plan.

Delete Task

To delete the task, click More menu > Delete. Confirm that you wish to delete the task.

Warning

This step cannot be undone.

Plan Metadata References

Within the message of your other tasks, you can reference metadata about the plan, its tasks, and their execution. For more information, go to Plan Metadata References.

Examples

Slack channel message

Tip

Slack tasks are now a supported product feature. For more information, go to Create Slack Task.Create Slack Task

You can create an HTTP task to deliver a text message to a Slack channel of your choice.

Prerequisites

Set up your Slack installation to receive HTTP messages:

  1. If needed, create a Slack channel to receive your messages.

  2. Create an app.

  3. Activate incoming HTTP messages for your app.

  4. Specify the channel to receive your incoming messages.

  5. Copy the URL for the incoming HTTP request from the cURL statement.

Define the HTTP task

Parameter

Description

Name

This name only appears in AAC.

Method

Select the POST method.

Url

Paste the URL that you copied from Slack.

Headers

Copy the content headers from the Slack cURL command:

key: Content-Type
value: application/json

Body

{"text":"Your job has completed."}
Verify

  1. Click Test to validate that this task will work.

  2. Run a job and check the Slack channel for a message.

Plan metadata examples

You can reference metadata information from the plan definition and the current plan run as part of the request of your HTTP task.

Notes:

  • You can only insert metadata references for tasks that have already occurred in the plan run before the HTTP task begins.

  • Each task in the current run is referenced using a two-letter code. Example:

    {{$http_xx.name}}
Syntax

A plan metadata reference is constructed using the following syntax. In the appropriate textbox, enter one of the following values:

Tip

Start by typing $, which provides access to a menu tree of metadata references for each of the metadata reference types. The final syntax is noted above.

Plans:

Metadata information from the plan definition or the current plan run:

{{$plan
Plan information

The following request body contains references to the Plan name, plan run identifier, and the flow that was just executed:

{"text":"Plan: {{$plan.name}}
RunId: {{$plan.runId}}
Flow: {{$flow_7p.name}}
Success."}
Plan run information

The following request body contains plan execution information using timestamps:

{"text":"Plan: {{$plan.name}}
RunId: {{$plan.runId}}
- plan start: {{$plan.startTime}}
Running time: {{$plan.duration}}

Times:
- last task start: {{$flow_7p.startTime}}
- last task end: {{$flow_7p.endTime}}
"}
HTTP task information

You can reference information from an HTTP task that has already occurred:

{"text":"{{$http_qg.name}} returned {{$http_qg.statusCode}}."}

For more information, see Plan Metadata References.

Feed metadata inputs to the cloud function

This example demonstrates how you can use an HTTP task to deliver plan metadata to AWS lambda functions. A similar approach could be used for Google Cloud functions.

In this case, the rowCount value from the flow task execution is delivered via HTTP task to an AWS lambda function.

General steps:

  1. Define your plan.

  2. Flow task: Run the flow to generate the outputs needed for your Lamda function.

  3. HTTP task: generates an HTTP request whose body includes a reference to the rowCount metadata variable. Request body:

    {
 "rowCount": "{{$flow_7p['My Flow Name'].output['My output name'].rowCount}}"
}

  4. AWS Lambda functions: The following is pseudo-code for Lambda:

    import json
def lambda_handler(event, context):
  httpTaskBody = json.loads(event["body"])
  rowCount = httpTaskBody["rowCount"]

  return {
    'statusCode': 200,
    'body': json.dumps(rowCount)
  }

  5. Google Cloud functions: The following is pseudo-code for Google Cloud functions:

    def get_row_count(request):
  request_json = request.get_json()
  if request_json and 'rowCount' in request_json:
        rowCount = request_json['rowCount']
    return rowCount
  return 'No rowCount attribute provided'

Create a dataset with API response for Designer Cloud workflow

Use the HTTP task in Plans to read and produce datasets with API call response that can be used naturally in the Designer Cloud workflow.

Define the HTTP task

Parameter

Description

Name

This name only appears in AAC.

Method

Mandatory field. Select the POST or GET method.

URL

Mandatory field. URL where the HTTP request is received by the other application. Example: https://example.com/${id}

Headers

HTTP content headers as key-value pairs in a JSON format.

{
  "X-Custom-Header": "value",
  "X-Parametrized-Header": "${wf1.id}"
}

Body

The body of the request submitted to the receiving application. Can contain ${variables}.

{"text":"My text message to the receiving application."}

General steps:

  1. Create a workflow with your input.

  2. Create and run a Plan with an HTTP task to generate a dataset.

    Make sure to deselect the Delete dataset with API call response check box, setting the task to keep the dataset.

  3. In Designer Cloud, use the dataset generated in the previous step to create a workflow starting with the API response.

    By selecting the Load Configuration from Dataset checkbox, you are able to load a configuration (with all parameters) from the output dataset of the upstream workflow task.

    Caution

    See the Limitations section for the Input Dataset limits.

  4. In Plan, add the workflow as a downstream task for an already existing HTTP task. Modify the Plan to use the HTTP task output (specified in Step 1) as Designer Cloud workflow input.

  5. You can schedule the Plan now. This setup makes an API call, the response is passed to the Designer Cloud workflow and executed. The final output is available as usual.

Verify Signatures

Warning

Depending on the target application, implementing signature verification may require developer skills.

Optionally, you can configure the platform to sign the HTTP requests. Signed requests guarantee that the requests are sent from the platform, instead of a third party.

Below, you can review how the signature is created, so that you can configure the receiving application to properly process the signature and its related request.

Signature Header

HTTP requests are signed by inserting the X-Webhook-Signature header in the request. These signatures are in the following form:

X-Webhook-Signature: t=<timestamp>,sha256=<signature>

where:

  • <timestamp> - Timestamp when the signature was sent. Value is in UNIX time.

  • <signature> - SHA256 signature. The platform generates this signature using a hash-based message authentication code (HMAC) with SHA-256.

More information on these values is available below.

Example:

X-Webhook-Signature: t=1568818215724,sha256=55fa71b2e391cd3ccba8413fb51ad16984a38edb3cccfe81f381c4b8197ee07a

Check Application Tools

Depending on the application, you may need to complete one of the following sets of tasks to verify the task signatures:

Note

You may need to whitelist the platform in your application. See the application's documentation for details.

You may be required to create some custom coding for your application. Below, you can review details on how to do so, including a JavaScript example.

Process Signed Requests

Timestamp

The timestamp value (t=<timestamp>) appears at the beginning of the header value to prevent replay attacks, where an attacker could intercept a valid payload and its signature and re-transmit them.

  • To avoid such attacks, a timestamp is included in the signature header and is also embedded as part of the signed payload.

  • Since the timestamp is part of the signed payload, an attacker cannot change the timestamp value without invalidating the signature.

    • If the signature is valid but the timestamp is too old, you can then choose to reject the request.

    • For example, if you receive a request with a timestamp that corresponds to a date from one hour ago, you should probably reject the request.

  • For more information on replay attacks, go to https://en.wikipedia.org/wiki/Replay_attack.

Signature

The task signature includes as part of its hashed value:

  • The secret key (entered above)

  • The timestamp value

  • Request data:

    • (POST/PUT/PATCH) - the body of the request

    • (GET/DELETE) - URL of the request

Step 1 - Extract the timestamp and signatures

Split the X-Webhook-Signature header:

  1. Split values using the , character as a separator.

  2. Split each of the parts using the = character.

  3. Extract the values for the timestamp and signature. From the above example:

    1. timestamp: 1568818215724

    2. signature: 55fa71b2e391cd3ccba8413fb51ad16984a38edb3cccfe81f381c4b8197ee07a

Step 2 - Create the expected signature

In the receiving application, you can recompute the signature to verify that the request was sent from the platform.

  1. Concatenate the timestamp, the dot character . and the request body (POST/PUT/PATCH methods) or the url (GET/DELETE methods).

  2. Suppose the above example is the signature for a POST request, and the request body is test. The concatenated value is the following:

    1568818215724.test

  3. You can now compute the HMAC authentication code in your receiving application. In the following JavaScript example, the secret key value is mySecret:

    const crypto = require('crypto');

const message = '1568818215724.test'; // as defined above

const hmac = crypto.createHmac('sha256', 'mySecret');
hmac.update(message)
const expectedSignature = hmac.digest('hex');
Step 3 - Compare the signatures

The value returned by your code and the value included as the signature in the X-Webhook-Signature header should be compared:

  • If the values do not match, reject the request.

  • If the values do match, compute the difference between the current timestamp and the timestamp in the header. If the difference is outside of your permitted limit, reject the request.

  • Otherwise, process the request normally in your application.

Load HTTP Configuration from Dataset

In case you need to create a dynamic API request or multiple requests, you can use Designer Cloud to define a an output with the configuration and pass this output to the HTTP task in Plans.

To define a an output with the configuration and use it for the HTTP task follow these steps:

  1. Create a workflow in Designer Cloud. For more information, go to Build Workflows.

  2. In the workflow, set an output file format as CSV that contains following columns (names are case-insesitive):

    • Method (string, values: GET | POST | DELETE | PUT),

    • URL (string, the request URL),

    • Headers (string, the list of headers with values in a format {“Name”:“Value”, “Name”:“Value”, ...}),

    • Body (string).

  3. Go to Plans and create a plan.

  4. Add a Designer Cloud task and select the newly created workflow.

  5. Add an HTTP task after the Designer Cloud task and connect it with a connector line.

  6. In the HTTP configuration, select the Load Configuration from Dataset checkbox and the Load Configuration from Dataset checkbox.

  7. Hit the Select Input Dataset button.

  8. Choose the Designer Cloud task and its output data with the HTTP configuration.

  9. Select Confirm.

  10. The Create Dataset from Response checkbox will get automatically selected. You can customize the name of the dataset and run the Plan.

Note

Each row in the configuration output file leads to a separate request. The response from each request will be added as a row in the output dataset.

Use HTTP Response as Input for Downstream Task

Once you set the HTTP task to create a dataset from response, you can use this dataset as an input to downstream tasks.

To use the dataset as an input to downstream task, follow these steps:

  1. In the HTTP Configuration, select the Create Dataset from Response checkbox.

  2. Add a Designer Cloud task after the HTTP task and connect it with a connector line.

  3. In Designer Cloud task, select the desired workflow.

  4. In the list of workflow inputs, select Override on the input you want to override with the HTTP response.

  5. Select the HTTP task and its output.

  6. Select Confirm and run the Plan.

In this section:
