Pontes de dados

Nome da ponte de dados

Cloud Provider: AWS

Network Transport: The selected cloud provider determines the private connectivity service. When you select AWS, Alteryx uses AWS PrivateLink. This value is populated automatically and can’t be edited.

Região: a região deve corresponder à região da sua VPC e deve ser padronizada para a região em que você está atualmente.

ID da zona de disponibilidade: o ID da zona de disponibilidade identifica as zonas de disponibilidade do AWS onde esse ponto de extremidade está disponível.

Porta: a porta é usada para conectar a ponte de dados ao Alteryx. O padrão é 9001.

Baixar o arquivo binário do Bridge Client no Portal de Licenciamento.

Importar Bridge Client para o EC2 com acesso secreto do AWS:

No AWS, crie uma instância do EC2 usando o Amazon Linux AMI que possa se conectar à sua fonte de dados privada e tenha permissão para ler ou gravar segredos no Gerenciador de segredos do AWS. Para obter mais informações sobre como criar uma instância do EC2, consulte a documentação do AWS Introdução ao Amazon EC2.

Em seguida, importe o Bridge Client para o diretório /home/ec2-user em /.

Make the binary executable. The Bridge Client binary must have executable permissions before it can be run.

chmod +x bridge-client

Salvar fragmento de configuração em um arquivo:

Copie e cole o fragmento em um arquivo de configuração chamado bridge-client-config.json no diretório /home/ec2-user, que será referenciado pelo Bridge Client.

Exemplo:

{
  "logging": {
    "logLevel": "info",
    "logFormat": "json"
  },
  "bootstrap" : {
    "storageType": "secretsManager",
    "secretName": "<Name of the AWS Secrets Manager secret where the Bridge Client will store its private key. The Bridge Client will create and populate this secret automatically.>"
  },
  "libp2pPort": 9001,

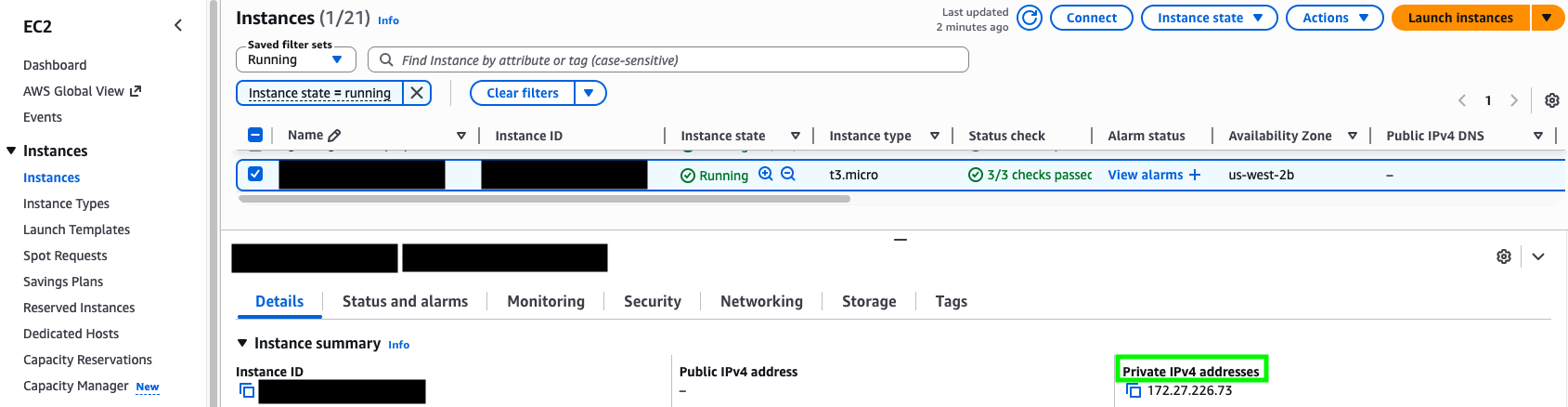

  "libp2pBindIP": "<Private IPv4 address of the EC2 Instance>",
  "resourceFile": "/home/ec2-user/resources.json"
}

{
  ...
  "bootstrap": {
    "storageType": "aws",
    "secretName": "<Name of the AWS Secrets Manager secret where the Bridge Client will store its private key. The Bridge Client will create and populate this secret automatically.>",
    "aws": {
      "kmsKeyID": "arn:aws:kms:<region>:<account-id>:key/<key-id>"
    }
  }
  ...
}

{
  "Effect": "Allow",
  "Action": [
    "kms:Decrypt",
    "kms:Encrypt",
    "kms:GenerateDataKey",
    "kms:DescribeKey"
  ],
  "Resource": "arn:aws:kms:<region>:<account-id>:key/<key-id>",
  "Condition": {
    "StringEquals": {
      "kms:ViaService": "secretsmanager.<region>.amazonaws.com"
    }
  }

Crie o arquivo resources.json:

Crie um arquivo chamado resources.json no diretório /home/ec2-user. Esse arquivo é necessário para que o Bridge Client inicie e gerencie recursos no tempo de execução.

O arquivo deve conter um objeto JSON vazio ({}) e não pode ficar em branco.

{}

Executar o Bridge Client como um processo:

Configurar o serviço de ponto de extremidade do PrivateLink:

quando a instalação estiver concluída, configure o serviço de ponto de extremidade do PrivateLink na sua VPC.

O nome do serviço de ponto de extremidade

O ID de par do Bridge Client registrado no passo 2.

Selecione um espaço de trabalho no menu suspenso. São mostrados apenas espaços de trabalho com o recurso de execução do espaço de trabalho habilitado. Em seguida, selecione Próximo.

A função do IAM é exibida. Copie e cole na lista Permitir principais em sua VPC privada. Para obter mais informações sobre como configurar o Centro de identidades do IAM do AWS, consulte Introdução ao Centro de identidades do IAM ou Configuração da autenticação do Centro de identidades do IAM com a CLI do AWS.

Depois de concluído, selecione Próximo.

Go to the PrivateLink service in your AWS Console, then accept the private endpoint connection from the Alteryx account. Make sure the status is green before you continue.

Go to the 3-dot menu next to the workspace entry, then select Test Connection for that workspace. A toast message appears in the lower-left corner and shows the test status and result.

Data Bridge Name

Cloud Provider: Google Cloud, if shown.

Network Transport: The selected cloud provider determines the private connectivity service. When you select GCP, Alteryx uses Private Service Connect. This value is populated automatically and can’t be edited.

Region: The region must match the region where you will deploy the Bridge Client and Private Service Connect service attachment.

Availability Zone ID: The Availability Zone ID identifies the AWS availability zones where this endpoint is available.

Port: The port used to connect the Data Bridge to Alteryx. The default is 9001.

Download the Bridge Client binary file from the Licensing Portal.

Create a Compute Engine VM that can connect to your private data source. The VM should be deployed without a public IP address unless your organization explicitly requires one.

Attach a service account that can access the configured Google Cloud Secret Manager secret.

Make sure the VM has Cloud API access scopes that allow Secret Manager calls.

Import Bridge Client to the VM:

Import the Bridge Client binary to the VM, for example under /etc/ayx/bridge-client directory.

Make the binary executable. The Bridge Client binary must have executable permissions before it can be run.

sudo chmod +x /etc/ayx/bridge-client/bridge-client

Save configuration snippet to a file:

Copy and paste the snippet into a configuration file named bridge-client-config.json inside of the /etc/ayx/bridge-client directory.

Example:

{
  "logging": {
    "logLevel": "info",
    "logFormat": "json"
  },
  "bootstrap": {
    "storageType": "gcp",
    "secretName": "<Name of the GCP Secret Manager secret where the Bridge Client will store its private key>",
    "gcp": {
      "projectID": "<GCP project ID that owns the Secret Manager secret>"
    }
  },
  "libp2pPort": 9001,
  "peerLibp2pPort": 9001,
  "libp2pBindIP": "<Internal TCP load balancer forwarding rule IP>",
  "resourceFile": "/etc/ayx/bridge-client/resources.json",
  "stateStorage": {
    "type": "file",
    "path": "/etc/ayx/bridge-client/resources.json"
  },
  "rest": {
    "port": "8081"
  }
}

{
  ...
  "bootstrap": {
    "storageType": "gcp",
    "secretName": "<Name of the GCP Secret Manager secret where the Bridge Client will store its private key.>",
    "gcp": {
      "projectID": "<GCP project ID that owns the Secret Manager secret>",
      "kmsKeyID": "projects/<kms-project-id>/locations/<location>/keyRings/<key-ring>/cryptoKeys/<key-name>"
    }
  }
  ...
}

gcloud kms keys add-iam-policy-binding "<key-name>" \
  --project "<kms-project-id>" \
  --location "<location>" \
  --keyring "<key-ring>" \
  --member "serviceAccount:service-<secret-manager-project-number>@gcp-sa-secretmanager.iam.gserviceaccount.com" \
  --role "roles/cloudkms.cryptoKeyEncrypterDecrypter"

Create the resources.json file:

Create a file named resources.json in the /etc/ayx/bridge-client directory. This file is required for the Bridge Client to start and manage resources at runtime.

The file must contain an empty JSON object ({}) and must not be blank.

{}

Run Bridge Client as a process:

Set up the internal TCP load balancer:

In Google Cloud, create these resources in the same region as the Bridge Client deployment.

Configure firewall rules to allow:

Create a PSC NAT subnet:

Create a dedicated subnet in the producer VPC with purpose PRIVATE_SERVICE_CONNECT.

The PSC NAT subnet...

Create the Private Service Connect service attachment:

Create a PSC service attachment that points to the internal TCP load balancer forwarding rule.

Use the service attachment URI from the selected Google Cloud region. Example:

projects/PROJECT_ID/regions/REGION_ID/serviceAttachments/bridge-client-psc

For stricter access control, configure the service attachment to accept connections manually and add the Alteryx-provided consumer project, VPC network, or endpoint to the consumer accept list.

Leave PROXY protocol disabled unless Alteryx explicitly instructs you to enable it for Bridge Client.

After the service attachment is created, record the service attachment URI.

The PSC service attachment URI

The Bridge Client peer ID recorded from the Bridge Client logs.

Select a Workspace from the dropdown. Only workspaces with Workspace Execution enabled are shown. Then select Next.

Copy the Alteryx-provided GCP consumer identifier. Depending on the configuration, this might be a consumer project, VPC network, or PSC endpoint identifier.

In Google Cloud, update the PSC service attachment consumer accept list or approve the pending connection request.

If the test fails, the setup might not be complete and the remaining steps won’t work.

After the connection test succeeds, you can create a new data source network mapping.
